Ripples PCB
Price: £9.99
USA tariffs, we can arrange an extra prepayment of tariffs after you have paid for your order, all our PCB's and panels are made in England, so the tariff on these items is 10%, for the most predictable figure, just order PCB's and panels with nothing else, please email us before you order if you want to discuss costs, we will add about a dollar handling charge as we have to pay a fee for this.
EU Customers, pay your local sales tax at the checkout, no extra customs charges on arrival, only on orders below €150 (about GBP £130), over €150 you pay the postman with an extra charge.
Ripples is a voltage controlled filter with built in VCA, just one of these plus an envelope generator like tides can give you a complete hybrid digital/analogue synth voice.
Add another tides with the sheep firmware or a peaks dual ADSR and LFO and you'd have a wavetable VCO with analogue filter and VCA with a high tech modulation section.

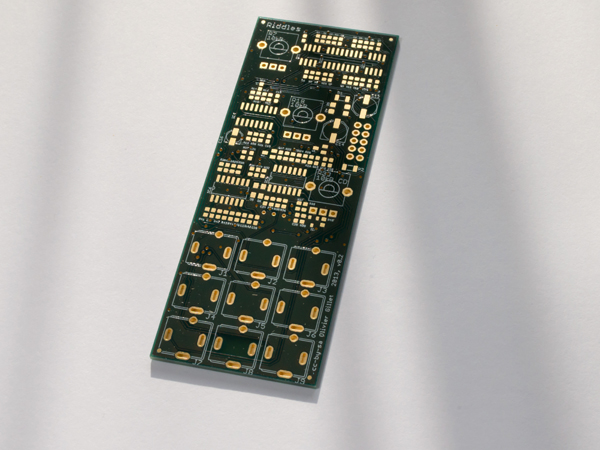

The PCB's are the Latest version, v4, I just haven't got round to updating the photo yet. The current batch of PCB's are made at a top end factory in England.
Or perhaps you are a lover of FM? Ripples makes a decent enough sine VCO, tracks fairly well over a few octaves and the built in VCA means you can make rich FM timbres with a couple of these and a peaks (dual ADSR or LFO) for instance.
I normally recommend Ripples to SMD beginners, it is one of the easiest of these boards to construct the building experience provides a strong foundation for the harder projects, some people have gone straight from building this to soldering Braids.
Here's a Mouser Cart BOM for easy ordering of most parts and for costing your builds. Try ordering several projects at once for lowest prices.
Ripples needs 1 SSI2164 Quad VCA IC
Returns policy
If you're not completely satisfied, You can return these PCB's for any reason within 14 days of purchase for a full refund!
Mutable Instruments do not have time to support DIY builds, please contact me with support queries related to these PCB's.
