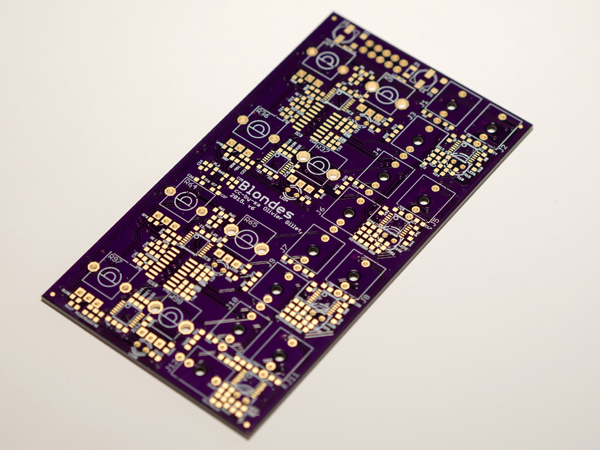

Blinds PCB
Price: £14.99
USA tariffs, we can arrange an extra prepayment of tariffs after you have paid for your order, all our PCB's and panels are made in England, so the tariff on these items is 10%, for the most predictable figure, just order PCB's and panels with nothing else, please email us before you order if you want to discuss costs, we will add about a dollar handling charge as we have to pay a fee for this.
EU Customers, pay your local sales tax at the checkout, no extra customs charges on arrival, only on orders below €150 (about GBP £130), over €150 you pay the postman with an extra charge.
Blinds is a 4 channel multiplier - similar to Shades, but the super fast 2164 VCA chips used turn this into a voltage controlled ringmod and attenuverting mixer. You could also use this as two voltage controlled crossfaders at a pinch, mixed by an external mixer like links or shades.
Blinds uses 0603 parts in a fairly dense configuration, so I'd rate it as one of the harder PCB's to put together, you might try this after you've built something like Clouds successfully.
If you're using the SSI2164 instead of V2164 then you'll need to change the values of the following 47pf caps to 100pf: C10, C19, C35, C44
Here's a Mouser Cart BOM for easy ordering of most parts and for costing your builds. Try ordering several projects at once for lowest prices.
Blinds needs 2 SSI2164 Quad VCA IC's
Returns policy
If you're not completely satisfied, You can return these PCB's for any reason within 14 days of purchase for a full refund!
Mutable Instruments do not have time to support DIY builds, please contact me with support queries related to these PCB's.
